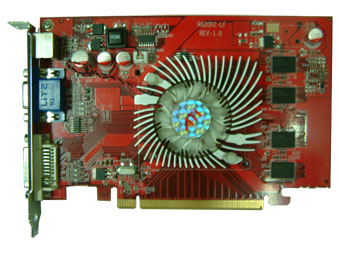

Radeon HD 3450 (PCI-E X16)

X3450-EI-512H

Chipset : ATI Radeon HD 3450 System Interface : PCI-Express2.0 CLK/MLK : 600MHz/800 MHz Memory Size : DDR2 512M 64bit RAMDAC : 400MHz Connector : HDTV,D-sub,DVI-I HDCP HDMI
Highlight RADEON HD X3450GPU PCI Express® 2.0 Support the most demanding graphics applications thanks to PCI Express® 2.0 support, which allows up to twice the throughput of current PCI Express® cards. 32-bit floating point texture filtering Lossless Z Compression & Fast Z-Buffer Clear Hierarchical Z-buffer with Early Z test Support for Microsoft DirectX® 10.1 & Shader Model4.1 HDMI output support Main Features 64 stream processors More than enough horsepower to support the most demanding graphics applications. ATI CrossFireX Upgrade to even greater 3D performance quickly and easily thanks to plug-and-play ATI CrossFireX multi-GPU technology. Complete feature set also supported in OpenGL® 2.1 Accelerated MPEG-2, MPEG-4, DivX, WMV9, VC-1, and H.264 decoding and transcoding Motion compensation, IDCT, DCT and color space conversion Fully distributed design with 512-bit internal ring bus for memory reads and writes ATI Avivo Video Post Processor control Driver & Support WindowsXP / Vista Linux Compatible Microsoft DirectX® 10 Compatible Support for OpenGL® 2.1
Driver
Type Version size Description Date Download Driver   147M VGA Driver for Windows VISTA/VISTA64

os: Windows VISTA/VISTA64

2008/3/18 Download Link Driver   176M VGA Driver for Windows 2000/XP/2003

os: 'Windows 2000/XP/2003/64Bbit

2008/3/18 Download Link

Manual
Type Version size Description Date Download Manual 1.0 650KB

Manual

2008/5/28 Download Link
