915G

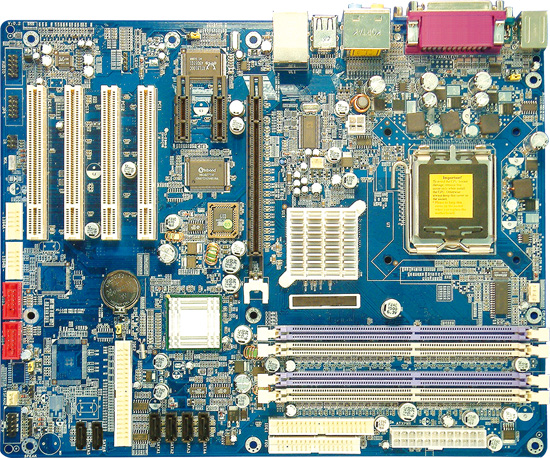

915GDBG

  Support LGA 775 Socket Pentium 4 CPU 533/800MHz F.S.B Prescott CPU Suppor USB 2.0 Support 8 Channel Speaker DDR333/400 SDRAM Support On-board 10/100/1000 LAN Onboard 1394a Port Onboard Serial ATA150 Port

Support LGA775 processor for Intel PentiumO 4 LGA 775 processor ,Support 533/800MHz System Bus Frequency,Support Prescott /Hyper-Threading CPU
Intel 915G (915GDBG) / 915P (915PDBG) and 82801FB (ICH6) chipset
Support ATA133
Integrated Graphice Controller (915GDBG only)
Extend PCI EXPRESS 16X
Onboard Realtek 8110S Giga_LAN
DDR400 DDR SDRAM support
Support 6-Channel 3D sound
Support 2-port 1394A
On board Serial ATA Controller Chip
PCбж99 Ready & PCбж99 Colorful I/O Ports Design
Support USB Controller & PS/2 Mouse , Standard IR (infrared) Function
Provide extra " three-wire" fans connectors
USB 2.0 support
Magic Frequency Setting
Jumperless
BIOS Write Protect function to avoid Virus crash data
PC Health Monitoring On Post Screen
Magic Install
Y2K Compliant
ACPI Supporting For OS Directed Power Management

Modem Ring remote wake up RTC alarm wake up Wake on LAN For OS Support software suspend & power off Power Fail Recovery Support Power Button Ride (Instant off or Delay 4 second power off) Power Fail Recovery support

 Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    Intel Pentium 4 Prescott 2.8G LGA775 , Hyper-Threading / Dual channel Enable DRAM:                         TwinMOS HY5DU568822CT 512M DDR400 X 2 (1Gbyte) Memory VGA Card:        ON BOARD VGA (1024X768X32bit Color) Hard Disk Driver:   Maxtor DiamondMax Plus8 ( ATA-133 7200RPM ) BIOS:                      BIOS Load Optimal Default OS:                             Windows XP Professional (SERVICE PACK 1) 915GBA 3D Mark 2001SE 4940 3D Mark 2003 1296 3D Mark 2003 7570  PCMark2004  System / CPU / Memory 3774 / 4296 / 4640  Graph / HDD 1053 / 3173  Content Creation Winstone 2004 26.7  Business Winstone 2004 20.4  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 7350 / 33100  Business/Hi-end Graphic Winmark 288 / 754 SISMark 2004 : SISMark Rating (Internet Content Creation / Office Productivity) SISMark 2004 165 ( 181 / 15 1 ) 3D Creation / 2D Creation 180 / 205 / Web publication 162 Communication / Document Creation 126 / 164 /Data Analysis 167 SISOFT Sandra 2005 :1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 7611 Whetstone FPU iSSE2 FLOPS 3222 / 5775 2.Int/Float Buffered iSSE2 MB/S 4624 / 4622 3.Integer/Floating-Point iSSE2 IT/S 19792 / 26618 UT2003 Benchmark FPS 74.71 / 30.34 Quake 3 DEMO 1 / DEMO2 FPS 132.3 / 128.7 Return to Castle Wolfenstein FPS 73.4 Super Pi (1M) Second 46s CPU System / CPU Clock Mhz 200.0 / 2800.1


BIOS
Type Version size Description Date Download BIOS       2006-3-3 Download Link

 Driver
Type Version size Description Date Download LAN   12M OnBboard Realtek PCI Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Other1   7.9M Onboard SiS SATA Controller Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link VGA   11M Intel 915 VGA Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Chipset   1.2M Intel 915 Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link

 Manual
Type Version size Description Date Download Manual   930KB M/B For LGA 775 Pentium 4 Processor 2006-5-9 Download Link

 Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
