GeForce 7050PV/nForec630A Series

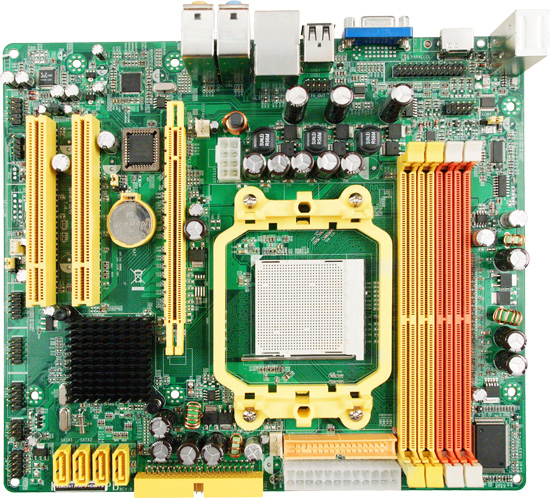

M28GT3-PHG

M28GT3-PHG NVIDIA NF-7050SE-630A (MCP68PV) Chipset Support Socket AM2 64-bit dual core AMD Athlon 64 X2 Integrated Geforce 7050 GFX Core processor Support HTT 1000MHz Advanced 3-Phase PWM Design W Dual Channel DDR2 800 Memory DIMMs Supported Support 4 Serial ATA2 Devices with RAID 0, 1, 0+1, 5,JBOD Support NV Firewall Support HDMI Output Support HDTV Output Gigabit LAN Supported Azalia 8 Channel Audio CODEC CPU Vcore 7-Shift Micro ATX Form Factor

Socket AM2 64-bit AMD Athlon 64 Processor with HyperTransport Technology
AMD64, a revolutionary technology allowing the processor to run 32-bit applications at full speed while enabling a new generation of powerful 64-bit software applications. HyperTransport?technology can increase overall system performance by removing I/O bottlenecks, increasing system bandwidth, and reducing system latency.

NVIDIA NF-7050SE-630A (MCP68PV) chipset
These chips are the latest product designed by NVIDIA which comes out with HDMI Out and integrated graphics based on Geforce 7 technology and it supports DirectX 9.0c and Shader model 3.0. Ramdac works at 300 MHz that is enough for 1920x1440 resolution at 75 Hz. The integrated graphics supports Pure Video and HD H.264 video up to 720P. The various boards support Nview multi display technology and VGA+DVI-D or VGA + DVI-I combinations are possible.

CPU Thermal Throttling / The Anti-superheated CPU protection Technology
To prevent the increasing heat from damaging of CPU, the CPU Thermal Throttling Technology will make CPU be idling from 87.5% to 12.5% by manually preset CPU operating temperature from 40бЎ to 90бЎ. When the system senses the climbing operating temperature of CPU over the value preset, CPU Thermal Throttling Technology will narrow the operating bandwidth of CPU actively to low down the temperature to the value preset as the perfect protection system of hardware dynamic over-clocking technology.

Pro Magic Plus System Recovery Software Embedded
Restore important data back right away, allowing your system to be operated under a safe environment. This amazing software not only provides convenient instant restoration, but also brings data back to the preferred state at any specific time point as you wish. Moreover, it combines several other functions such as anti-virus, backup software, uninstall software, multi-booting etc. to satisfy your needs of all sorts of system protections. No more worries on new virus or system failure!

PCI Express Buses
The PCI Express x16 graphics delivers up to 4 GB/s per direction, 3.5 times more bandwidth than AGP8X and up to 8 GB/s concurrent bandwidth. PCI Express x1 I/O offers 500 MB/s concurrently, over 3.5 times more bandwidth than PCI at 133 MB/s, tackling the most demanding multimedia tasks nowadays.

CPU Vcore 7-Shift / Shift_to the scalabilities and flexibilities
The adjustable voltage for CPU Vcore can be upgraded in 14 stages for the precisely hardware dynamic over-clocking of demanding computing performance.


Specification CPU Socket AM2 HTT 1000 MHz AMDl® Athlon™64 With HyperTransport Technology Compatible with 64-bit Dual Core AMD® Athlon™64 X2 Processor Chipset NVIDIA NF-7050SE-630A (MCP68PV) Single Chipset Memory 4 * 240-pin DIMM Sockets for unbuffered Dual DDR2 800 SDRAM up to 8 GB Expansion Slots 2 * 32-bit PCI Slots / 1* PCI EXPRESS x16 Slots Storage 2 * Ultra DMA 133 / 100 / 66 IDE Devices Support Embedded nForce™7050-630A Chipset Supports 4 Serial ATA2 Devices with RAID Functions. Audio Realtek ALC861 8-Channel Azalia Audio CODEC Ethernet LAN Realtek RTL8111B PCI-E Gigabit NIC USB Embedded 10 * High Speed USB @ 480 Mbit / s Special Features Advanced Power Design that supports the latest Socket-AM2 CPU бзIMAGE IT!би System Backup Software and бзProMagicPLUS!би System Recovery System Rear Panel I / O 4 * High Speed USB Connectors @ 480 Mbit / s 1 * PS / 2 Mouse & 1 * PS/2 Keyboard 1 * RJ45 Connector 1 * Audio I / O 1 * VGA Port 1 * HDMI port Internal I / O 3 * High Speed USB Connectors @ 480 Mbit / s for 6 USB 2.0 Ports CPU / Chassis Fan Connectors; 1 * 12V 8-pin ATX Power Connector and 1 * 24-pin ATX Power Connector CD / AUX Audio in 1 * Serial Port Header 1 * HDTV Output Header 1 * Parallel Port Header BIOS Award 4 MB Flash ROM Form Factor Micro ATX Form Factor

BIOS
Type Version size Description Date Download BIOS A09 512KB Fix AMD 4xxxe and sempron LE-1xxx string error. 2008-9-4 Download Link

Driver
Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link LAN   11M OnBboard Realtek PCI-E Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008-8-27 Download Link Chipset   83M Nvidia C55 + MCP 68 Chipset Driver

os: Windows VISTA 64bit

2007-5-22 Download Link Chipset   70M Nvidia C55 + MCP 68 Chipset Driver

os: Windows VISTA 32 bit

2007-5-22 Download Link Chipset   93M Nvidia C55 + MCP 68 Chipset Driver

os: Windows XP 64 bit , Windows 2003 64 Bit

2007-5-22 Download Link Chipset   82M Nvidia C55 + MCP 68 Chipset Driver

os: Windows 2000 , Windows XP 32 bit , Windows 2003

2007-5-22 Download Link

Manual
Type Version size Description Date Download Manual 2.0 809KB

Manual

2008-7-10 Download Link
