nFoce4 SLI Intel Edition

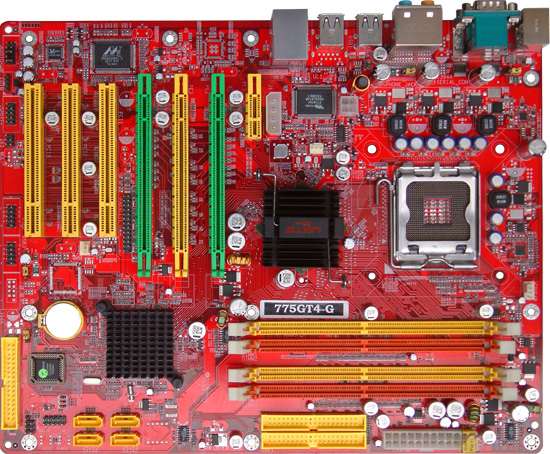

775GT4-G

775GT4-G nForce 4 SLI SPP + nForce 4 MCP Chipset SupportLGA 775 Socket for FSB 1066MHz Dual channel DDR2 667/533/400 Memory DIMMs
LGA 775 Intel Pentium4 3.6GHz Processor with HT Technology Supported

Innovative design which meets the world most advanced 90 nanometer Chip-Making Process technology based Intel Pentium4 520, 530, 540, 550, 560 and beyond Processors with Hyper Threading Technology and embedded 1MB L2 Cache for demanding usage of Home Networking and Game Enthusiasts.



NVIDIA nForce4 SLI SPP and nForce4 SLI MCP

NVIDIA nForce4 SLI MCPs (media and communications processors) offer blistering graphics performance and overall PC performance for both AMD and Intel platforms. With the power of SLI technology you get the ability to connect two NVIDIA SLI-Ready PCIExpress graphics cards for mind-blowing gameplay with brilliant and intensive 3D graphics. The unique low-latency architecture of the NVIDIA nForce4 SLI MCPs offers one of the industry best core-logic solution with outstanding performance and the latest technologies SLI, PCI Express, secure high-speed networking, and high-performance storage and ensures that your PC stays ready for the newest games, future applications, and next-generation PC specifications.



CPU Thermal Throttling / The Anti-superheated CPU protection Technology

To prevent the increasing heat from damaging of CPU while the activation of the Bi-turbo technology, the CPU Thermal Throttling Technology will make CPU be idling from 87.5% to 12.5% by manually preset CPU operating temperature from 40 oC to 90 oC. When the system senses the climbing operating temperature of CPU over the value preset, CPU Thermal Throttling Technology will narrow the operating bandwidth of CPU actively to low down the temperature to the value preset as the perfect protection system of hardware dynamic over-clocking technology.



Debug Port / the Professional Hardware System Monitoring System

Being bugged of abnormal system failure through the tossed and turned nights no more, the embedded Hardware Debug Port offers you the real-time visual system healthy for the demanding usage of computing. No more bugging by unknown system failure and no more time wasted in the first moment of 24-hour nonstop ping business computing, the embedded Debug Port will turn you into a well training hardware professional with the seeing system situation.



CPU Smart Fan / The Noise Restrained System

It is never been a good idea to sacrifice the sound effects for gaining the performance you need. CPU Smart Fan Noise Restrained System is the answer to all the noise restrained needed high performance computing system, the system will automatically increase the fan speed when CPU operating loading is high, after the CPU is in normal operating condition, the system will low down the fan speed for the silent operating environment. The system can provide the much longer life cycle for both CPU and the system fans for game use and business requirements.



OC-CON high-polymer solid electrolysis aluminum capacitors embedded

The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC_CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too.



CPU Vcore Shift / Shift_to the scalabilities and flexibilities The adjustable voltage for CPU Vcore can be upgraded over 13 stages for the precisely hardware dynamic over-clocking of demanding computing performance.

 Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    Intel Pentium 4 Prescott 3.4G ( C1E ) DRAM:                         PMI SAMSUNG 512 M DDR2-533 X 2 1Gbyte Memory VGA Card: Nvidia Geforce 6600GT 128M (1024X768X32bit Color) Nvidia Geforce 6600GT 128M X2 for SLI Hard Disk Driver:   Seagate Barracude 7200.7 SATA150 BIOS:                      BIOS Load Optimal Default OS:                             Windows XP Professional (SERVICE PACK 2) 775GT4 Nvidia Original SLI 3D Mark 2001SE 18394 20139 3D Mark 2003 8745 14337 3D Mark 2005 3662 6355 AQUAMRK3 (GFX / CPU) 55811 ( 7800 / 9812 ) 69572 ( 10848 / 9698 )  PCMark2004  System / CPU / Memory 5180 / 5232 / 5349 5092 / 5185 / 5353  Graph / HDD 4171 / 4619 5211 / 4649  Content Creation Winstone 2004 31.7 28.5  Business Winstone 2004 21.4 17.6  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 17100 / 40000 14200 / 39500  Business/Hi-end Graphic Winmark 742 / 1500 729 / 1490 SISMark 2004 : SISMark Rating (Internet Content Creation / Office Productivity) SISMark 2004 188 ( 199 / 172 ) N / A ( 216 / fault ) 3D Creation / 2D Creation 182 / 247 196 / 256 / web publication 175 193 Communication / Document Creation 192 / 186 N / A /Data Analysis 201 N / A SISOFT Sandra 2005 :1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 10023 9946 Whetstone FPU iSSE2 FLOPS 4147 / 6985 4068 / 7134 2.Int/Float Buffered iSSE2 MB/S 4805 / 4804 4804 / 4811 3.Integer/Floating-Point iSSE2 IT/S 24507 / 32433 24.38 / 31834 UT2003 Benchmark FPS 253.48 / 85.85 238.27 / 83.40 DOOM3 FPS 94.5 85.5 Super Pi (1M) Second 38s 38s CPU System / MEMORY / CPU Mhz

BIOS
Type Version size Description Date Download BIOS   512KB 1.Update new micro code. 2.Default start year = 2006. 3.Fix 3Dmark2006 run issue. 4.Fix Celeron 2.66G into WinXP restart fail issue. 5.Fix restart USB device detect fail issue. 2006-4-29 Download Link

Driver
Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Chipset   24M NF4 Chipset Driver For VISTA

os: Windows VISTA 64bit

2007-4-10 Download Link Chipset   23M NF4 Chipset Driver For VISTA

os: Windows VISTA 32 bit

2007-4-10 Download Link Chipset   36M NF4 Chipset Driver

os: Windows XP 64bit

2006-4-4 Download Link Chipset   37M NF4 Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Chipset   35M NF4 Chipset Driver

os: Windows 2003 64 bit

2006-4-4 Download Link Raid   1.3M NF4 Raid Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link

Manual
Type Version size Description Date Download Manual   2.48M M/B Manual 2006-4-3 Download Link

 Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
