AMD Processor Embedded

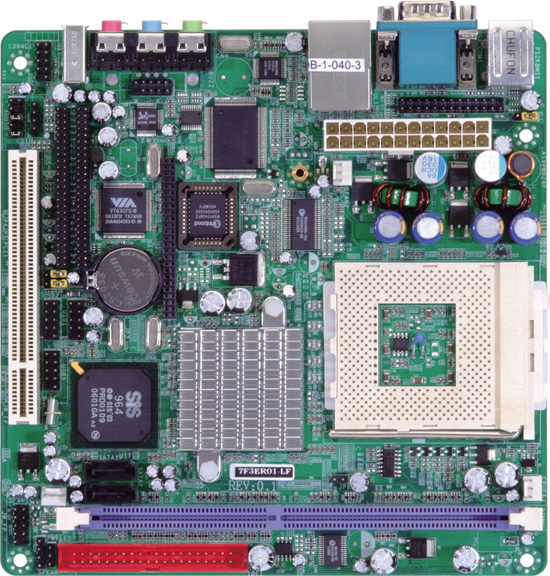

J7F3E1250LV

SIS 741CX + 964 chipset. Support AMD Geode NX 1250 @ 667MHz. Support Front Side Bus 133MHz . Single Channel DDR 400 Memory DIMM . Support 2 Serial ATA Devices with RAID 0,1 . Support PCI 120-Pin Adapter Conn. With Expansion Daughter-boards . Ethernet LAN Supported . 6 Channel AC, 97 Audio CODEC. VIA VT6307 IEEE1394a Controller . 17 X 17CM Mini-ITX Form Factor.



Form Factor  Mini-ITX Express Motherboard CPU  Support AMD Geode NX 1250@667MHz Processor .
 Package type : Socket 462 . Memory  1 * 184 -pin DIMM Sockets for unbuffered DDR 400 SDRAM up to 1 GB. Chipset  SIS 741CX + 964 chipset Technology . Power Management  N / A . PCI enhanced IDE  2 * Ultra DMA 133 / 100 / 66 IDE Devices Support . Serial ATA Interface  2 Serial ATA HDDs with RAID 0.1 Function Support VGA Interface  SIS Mirage Graphic Engine . Video Memory  Share Memory up to 128MB. LVDS Interface  N / A . Audio Interface  Realtek ALC655 6-Channel HD Audio CODEC. LAN Interface  Realtek RTL8201CL 10 / 100 PCI LAN Extended Interface  1 * 32-bit PCI Slot .
 1 * PCI 120-Pin Adapter Connector With Expansion Daughter Boards. Internal I/O Port  2 * High Speed USB Connectors @ 480 Mbit / s for 4 USB 2.0 Ports
 CPU / Chassis Fan Connectors / 1 * 26-pin Parallel Connector.
 1 * 9-Pin COM2 Connector / 1 *CD / AUX Audio in & SPEAK Out.
 1 * LVDS Connector. Externall I / O Port

 2 * High Speed USB Connectors @ 480 Mbit / s .
 1 * COM Port / 1 * D-Sub 15-pin VGA Connector .
 1 * PS / 2 Mouse & 1 * PS/2 Keyboard / 1 * RJ45 Connector / 1 * Audio I / O.
 1 * HEEE 1394a Connector .

BIOS  Award 4 MB Flash ROM Power Requirement  Standard 24 -Pin ATX Power supply . Dimension  170mm x 170mm . Temperature  Operating within 0~60 centigrade .
 Storage within -20-85 centigrade .

BIOS Type Version size Description Date Download BIOS 02 512 Change VGA BIOS. Add LAN PXERPL BootROM. 2006/10/4 Download Link

Driver Type Version size Description Date Download Sound   40M OnBoard ALC Codec Sound Driver

os: Windows 2000 , Windows XP , VISTA

2007/5/23 Download Link LAN   2.9M OnBboard Lan Driver

os: Windows 2000, WindowsXP 32-bit

2006/7/10 Download Link Chipset   2.3M SiS Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006/4/4 Download Link Raid   5M Onboard SATA/Raid Driver

os: Windows 2000 , Windows XP 32 bit

2006/4/4 Download Link VGA   13M OnBoard Integrated Mirage Graphic Engine

os: Windows 2000

2006/4/4 Download Link Other1   4.8M Hardware Monitoring

os: Windows 2000

2006/4/4 Download Link Other2   2.6M SiS 741 IDE Driver

os: Windows 2000 , Windows XP 32 bit

2006/4/4 Download Link

Manual Type Version size Description Date Download Manual 3.0 1.56M SiS 741CX North Bridge Chipset & SiS 964 South Bridge Chipset M/B For AMD Geode ™ processor family 2007/4/4 Download Link

Utility Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006/7/31 Download Link
