CN700

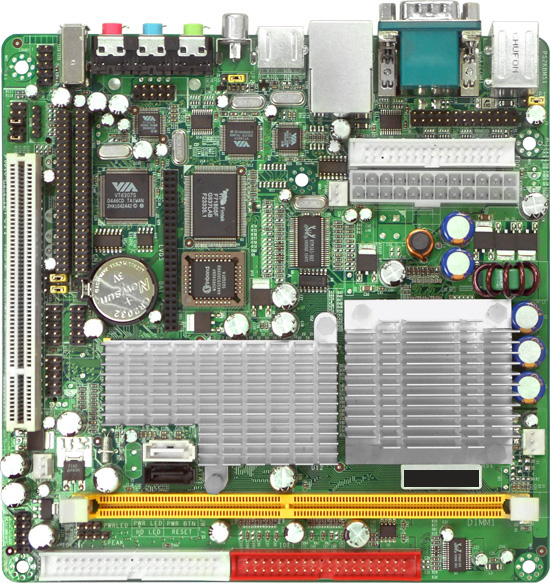

J7F2WE1GE

VIA CN700 Northbridge + VT8237RP Southbridge chipset. Support VIA Eden 1GHz processor. Support Front Side Bus 400MHz . Single Channel DDR2 533 Memory DIMM . Support 2 Serial ATA Devices with RAID 0,1 . Support PCI 120-Pin Adapter Conn , With Expansion Daughter-boards . 10/100 Ethernet LAN Supported . AC, 97 6 Channel Audio CODEC. VIA VT6307S IEEE1394a Controller. VIA VT1622A TV Encoder . 170mm X 170mm Mini-ITX Form Factor.
Overview
Form Factor Mini-ITX Express Motherboard CPU Support VIA Eden 1GHz Processor . Memory 1 * 240 -pin DIMM Sockets for unbuffered DDR2 533 SDRAM up to 1 GB. Chipset VIA CN700 + 8237RP Chipset . Power Management N / A . PCI enhanced IDE 4 * Ultra DMA 133 / 100 / 66 IDE Devices Support . Serial ATA Interface 2 Serial ATA HDDs with RAID 0.1 Function Support VGA Interface VIA Unichrome Pro Processor . Video Memory Share Memory up to 128MB. LVDS Interface N / A . Audio Interface VIA VT1617A 6-Channel AC 97 Audio CODEC. LAN Interface VIA VT6103CL 10 / 100 PCI LAN PHY .  Extended Interface 1 * 32-bit PCI Slot .
1 * PCI 120-Pin Adapter Connector With Expansion Daughter Boards. Internal I/O Port 3 * High Speed USB Connectors @ 480 Mbit / s for 6 USB 2.0 Ports
CPU / Chassis Fan Connectors
1 * 26-pin Parallel Connector
9-Pin COM2 Connector
1 * 24 -pin ATX Power Connector .
CD / AUX AUDIO IN & SPEAK Out . Externall I / O Port 2 * High Speed USB Connectors @ 480 Mbit / s .
1 * Serial Port
1 * D-Sub 15-pin VGA Connector .
1 * PS / 2 Mouse & 1 * PS/2 Keyboard
1 * RJ45 Connector
1 * Audio I / O.
1 * IEEE 1394a Connector .
1 * S-Video Port
1 * RCA Conn for TV-Out . BIOS Award 4 MB Flash ROM Power Requirement Standard 24 -Pin ATX Power supply . Dimension 170mm x 170mm . Temperature Operating within 0~60 centigrade .
Storage within -20-85 centigrade .

BIOS Type Version size Description Date Download BIOS 16.1 512KB

Solve the problem that the USB device does not have reaction

2008/8/18 Download Link BIOS 15.1 512KB Let the default of HPET/WDRT to be disabled. 2008/6/13 Download Link

Driver Type Version size Description Date Download Other1   9M Driver For Linux

os: Linux System

2007/1/23 Download Link Sound   8M Onboard VIA Sound Codec Driver

os: Windows 2000 , Windows XP 32 bit

2006/11/1 Download Link Chipset   7.4M VIA Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006/4/4 Download Link Other1   10M USB 2.0 Port Driver

os: Windows 2000

2006/4/4 Download Link VGA   20M OnBoard Unichrome Pro Processor

os: Windows 2000

2006/4/4 Download Link LAN   6.6M OnBboard VIA 6103 Lan Driver

os: Windows 98 , Windows 2000 , Windows XP 32 bit

2006/4/4 Download Link LAN   6.6M OnBboard VIA 6103 Lan Driver

os: Windows 98 , Windows 2000 , Windows XP 32 bit

2006/4/4 Download Link Raid   245K Onboard VIA SATA/Raid Driver

os: Windows 2000 , Windows XP 32 bit

2006/4/4 Download Link

Manual Type Version size Description Date Download Manual 5.0 1.66MB

Manual

2008/5/20 Download Link Manual 5.0 1.66MB

Manual

2008/5/20 Download Link

Utility Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006/7/31 Download Link
