780V

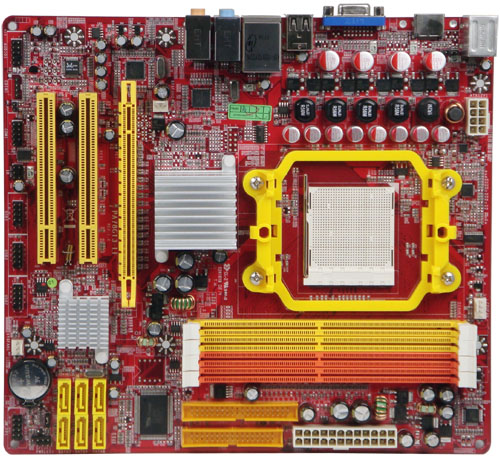

PA78VM3-H

PA78VM3-H AMD™ 780V Chipset and AMD™ SB700 Chipset Support Socket AM2+ Phenom™ processors Support HT 3.0 Integrated ATI Radeon HD 3100(For Microsoft DX 10) Supports Dual Channel DDR2 800 Integrated Serial ATA2 3Gb/s with RAID function Integrated ALC883 HD Audio CODEC with 8.0 CH Integrated Gigabit LAN CPU Vcore 7-Shift/HDMI Port Ready for Windows® Vista™ Micro ATX Form Factor
AMD Phenom™ Quad-Core Processors with True Quad-Core Technology
Realize new possibilities for connecting with friends, family, and digital entertainment with the phenomenal performance of the AMD Phenom™ 9000 series quad-core processor. Built from the ground up for true quad-core performance, AMD Phenom™ processors speed through advanced multitasking, critical business productivity, advanced visual design and modeling, serious gaming, and visually stunning digital media and entertainment
AMD™ 780V Chipset: Backbone of the Performance Platform
AMD™ 780V chipset based PCs feature the latest PCI-Express™ 2.0 bus technology and deliver high performance, low latency architecture offer one of the industryбжs advanced core-logic solutions with qualified performance and the latest technologies-PCI Express 2.0, secure high-speed networking, and high-performance storageбXand ensures that your PC stays ready for the newest games, future applications, and next-generation PC specifications
Hyper Transport Technology 3.0
The highly scalable Hyper Transport 3.0 is capable to provide incredible bandwidth of the system bus up to 20.8GB/s which would dramatically elevate the efficiency of computing performance.
PCI Express 2.0 Buses
The PCI Express 2.0 x16 graphics delivers up to 8 GB/s per direction, 2 times more bandwidth than PCI Express x16 and up to 16 GB/s concurrent bandwidth. PCI Express x1 I/O offers 1GB/s concurrently, over 7 times more bandwidth than AGP8X, tackling the most demanding multimedia tasks nowadays
GPU Clock Adjustable
Onboard VGA can over-clocking
Serial ATAв║ 3Gb/s&RAID
This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The SATA RAID allows multi-disk designs to be set up as RAID 0, 1,10 based on usersбж priority of protection/performance, and which even makes more accessible by introducing the innovative windows-based facility
PCI-Express Gigabit LAN
Delivers transfer speed ten times faster than conventional 10/ 100 Ethernet connections, supporting a high transfer rate up to Gigabit/s. Gigabit LAN is the networking standards for the future and is ideal for handing large amount of data such as video, audio, and voice
OC-CON high-polymer solid electrolysis aluminum capacitors embedded
The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC_CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too.
CPU Vcore 7-Shift / Shift to the scalabilities and flexibilities
The adjustable voltage for CPU Vcore can be upgraded in 31 stages for the precisely hardware dynamic over-clocking of demanding computing performance.


Specification CPU

Supports AMD Socket AM2+/AM2:

AMD Phenom processors Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron processors Chipset AMD™ 780V Chipset + AMD™SB700 Chipset Hyper Transport Bus HT 3.0 Integrated Graphics Processor ATI Radeon HD 3100(For Microsoft DX 10) Memory Dual Channel DDR2 memory technology 4 * 240-pin DDR2 DIMM slots Supports DDR2 800 non-ECC ,un-buffered memory Max.8GB Expansion Slots 2 * 32-bit PCI Slots 1 * PCI Express 2.0 x16 slot @16-lane Storage

AMD™SB700 Southbridge Chipset :

6 * Serial ATAв║ 3Gb/s connectors Supports HDDs with RAID 0, 1,10 Functions 1 * Ultra DMA 133 / 100 / 66 IDE Connector Audio Realtek ALC883 8-Channel HD Audio CODEC Ethernet LAN Marvell 88E8056 PCI Express Gigabit NIC USB Embedded 10 * USB 2.0/1.1 Special Features Advanced Power Design that supports the latest Socket-AM2 + K10 CPU Rear Panel I / O 4 * USB 2.0/1.1 ports 1 * PS/2 mouse port 1 * PS/2 keyboard port 1 * VGA port 1 * HDMI port 1 * RJ-45 port 1 * Audio I / O Internal I / O 3 * USB 2.0/1.1 headers for 6 USB 2.0/1.1 ports CPU / Chassis Fan connectors 1 * 8-pin ATX 12V Power connector 1 * 24-pin ATX Power connector 1 * Serial Port of 9-pin block CD / AUX Audio in 1 * Ultra DMA 133 / 100 / 66 IDE connector Front panel audio connector 1 * Floppy connector 1 * COM connector 1 * IR connector  BIOS Award 8MB SPI Flash ROM Form Factor Micro ATX Form Factor

BIOS
Type Version size Description Date Download BIOS A03 1MB

To solve the bug of abnormal phenomenom in keyboard typing-in when running the OS.

2008-5-8 Download Link BIOS A02 1MB

To solve the bug resulted from 2dh and 33h when computer turned on

2008-4-28 Download Lin

 Driver
Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link


 Manual
Type Version size Description Date Download Manual 1.0 464KB

Manual

2008-5-5 Download Link
