915G

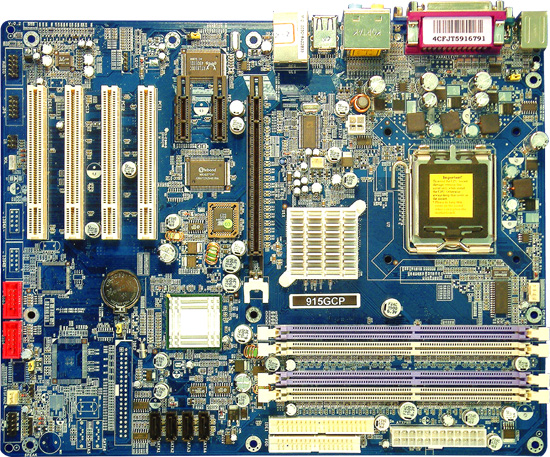

915GCP

Intel 915G/915P Chipset Support LGA 775 Socket Pentium 4 CPU 533/800MHz F.S.B Prescott CPU Support USB 2.0 Support 8 Channel Speaker DDR333/400 SDRAM Support On-board 10/100 LAN Onboard Serial ATA150 Port

LGA 775 IntelR PentiumR 4 3.6GHz Processor with HT Technology Supported

Innovative design which meets the worldЈѕs most advanced 90 nanometer Chip-Making Process technology based IntelR PentiumR 4 520, 530, 540, 550, 560 and beyond Processors with Hyper Threading Technology and embedded 1MB L2 Cache for demanding usage of Home Networking and Game Enthusiasts.



PCI Express Buses

The PCI Express x16 graphics delivers up to 4 GB/s per direction, 3.5 times more bandwidth than AGP8X and up to 8 GB/s concurrent bandwidth. PCI Express x1 I/O offers 500 MB/s concurrently, over 3.5 times more bandwidth than PCI at 133 MB/s, tackling the most demanding multimedia asks nowadays



IntelR 915G Chipset and 82801FR ICH deliver the Reliability and I/O Flexibility

Support the 800MHz Front Side Bus, Dual DDR2 533 and Dual DDR 400 SDRAM, PCI Express x16, USB 2.0, and 10 / 100 / 1000 Ethernet Network Interface Controller. 915P Based Motherboards gets the balance between the System Reliabilities and Performance which extends the circle of usage to your system memories and graphic accelerators



Support Dual-Channel DDR 400 memory DIMMs on System

Flexible memory technology allows a full spectrum of DDR usage from highest performance to more cost-effective systems.



High Definition Audio

The new consumer entertainment format supports 7.1 surround sound, Dolby Digital, and DTS. The audio CODEC supports 192 kHz quality, multiple streams, and better voice input for speech recognition and voice-over-IP. High Definition Audio codec embedded motherboards for the advanced usage of cost-effective peer to peer IP-phone software communication and Home Media Center building.



Serial ATA Optional with RAID

Serial ATA is an evolutionary replacement for the Parallel ATA physical storage interface. Users of the Serial ATA interface benefit from greater speed, simpler upgradeable storage devices and easier configuration. Integrated Serial ATA controller of high-speed data transfers at up to 150 MB/s for each port and up to 133 MB/s for 1 parallel port. Optional available on different model is RAID 0, 1 support.



IntelR GMA 900 Integrated GFX

Graphics flexibility, with support for both the built-in IntelR Graphics Media Accelerator (GMA) 900, which supports widescreen LCD displays and accelerated DirectX* 9 3D, plus support for PCI Express graphics cards

Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    Intel Pentium 4 Prescott 2.8G DRAM:                        TwinMOS HY5DU56822CT 512M DDR400 X 2 (1Gbyte) Memory VGA Card:        ON BOARD VGA (1024X768X32bit Color) Hard Disk Driver:   Maxtor DiamondMas Plus8 (ATA-133 7200RPM) BIOS:                      BIOS Load Optimal Default OS:                             Windows XP Professional (SERVICE PACK 1) 3D Mark 2001SE 4904 3D Mark 2003 1296 AQUAMRK3 7570  PCMark2004  System / CPU / Memory 3774 / 4296 / 4640  Graph / HDD 1053 / 3173  Content Creation Winstone 2004 26.7  Business Winstone 2004 24.0  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 7350 / 33100  Business/Hiend Graphic Winmark 288 / 754 SISMark 2004 : SISMark Rating (Internet Content Creation / Office Productivity) SISMark 2004 165 ( 181 / 151 ) 3D Creation / 2D Creation 180 / 205 /Web Publication 162 Communication / Document Creation 126 / 164 /Data Analysis 167 SISOFT Sandra 2004 : 1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 7611 Whetstone FPU iSSE2 FLOPS 3222 / 5775 2.Int/Float Buffered iSSE2 MB/S 4624 / 4622 3.Integer/Floating-Point iSSE2 IT/S 19792 / 26618 UT2003 Benchmark (flyby/botmatch) FPS 74.71 / 30.34 Quake3 DEMO1 / DEMO2 FPS 132.3 / 128.7 Return to Castle Wolfenstein FPS 73.4 Super Pi (1M ) Second 46s CPUZ System / CPU Clock Mhz 2000.0 / 2800.1

BIOS
Type Version size Description Date Download BIOS       2006-3-3 Download Link


Driver
Type Version size Description Date Download LAN   12M OnBboard Realtek PCI Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link VGA   11M Intel 915 VGA Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Chipset   1.2M Intel 915 Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link

Manual
Type Version size Description Date Download Manual   869KB M/B For LGA 775 Pentium 4 Processor 2006-5-9 Download Link


Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
