915P

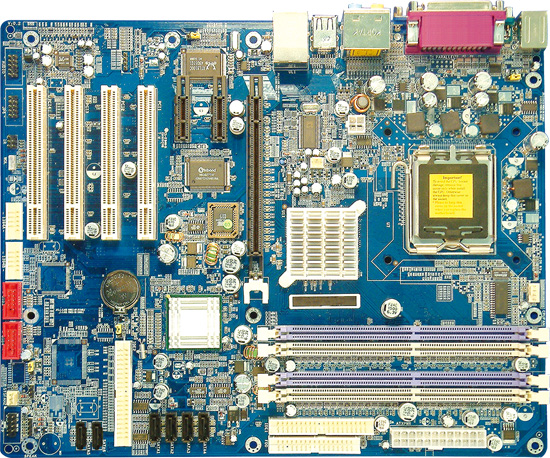

915PDBG

Intel 915G/915P Chipset Support LGA 775 Socket Pentium 4 CPU 533/800MHz F.S.B Prescott CPU Suppor USB 2.0 Support 8 Channel Speaker DDR333/400 SDRAM Support On-board 10/100/1000 LAN Onboard 1394a Port Onboard Serial ATA150 Port

Support LGA775 processor for Intel PentiumO 4 LGA 775 processor ,Support 533/800MHz System Bus Frequency,Support Prescott /Hyper-Threading CPU
Intel 915G (915GDBG) / 915P (915PDBG) and 82801FB (ICH6) chipset
Support ATA133
Integrated Graphice Controller (915GDBG only)
Extend PCI EXPRESS 16X
Onboard Realtek 8110S Giga_LAN
DDR400 DDR SDRAM support
Support 6-Channel 3D sound
Support 2-port 1394A
On board Serial ATA Controller Chip
PCбж99 Ready & PCбж99 Colorful I/O Ports Design
Support USB Controller & PS/2 Mouse , Standard IR (infrared) Function
Provide extra " three-wire" fans connectors
USB 2.0 support
Magic Frequency Setting
Jumperless
BIOS Write Protect function to avoid Virus crash data
PC Health Monitoring On Post Screen
Magic Install
Y2K Compliant
ACPI Supporting For OS Directed Power Management

Modem Ring remote wake up RTC alarm wake up Wake on LAN For OS Support software suspend & power off Power Fail Recovery Support Power Button Ride (Instant off or Delay 4 second power off) Power Fail Recovery support


Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    Intel Pentium 4 Prescott 3.2G DRAM:                        TwinMOS HY5DU56822CT 512M DDR400 X 2 (1Gbyte) Memory VGA Card:        Nvidia Geforce PCX 5900 (1024X768X32bit Color) Hard Disk Driver:   Maxtor DiamondMax Plus8 ( ATA-133 7200RPM) BIOS:                      BIOS Load Optimal Default OS:                             Windows XP Professional (SERVICE PACK 1) 3D Mark 2001SE 13672 3D Mark 2003 4733 AQUAMRK3 31995  PCMark2004  System / CPU / Memory 4636 / 4916 / 5032  Graph / HDD 3576 / 3127  Content Creation Winstone 2004 30.2  Business Winstone 2004 23.9  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 7620 / 32900  Business/Hiend Graphic Winmark 676 / 1310 SISOFT Sandra 2004 : 1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 8638 Whetstone FPU iSSE2 FLOPS 3694 / 6690 2.Int/Float Buffered iSSE2 MB/S 4682 / 4683 3.Integer/Floating-Point iSSE2 IT/S 22736 / 30515 UT2003 Benchmark (flyby/botmatch) FPS 198.77 / 74.04 Quake3 DEMO1 / DEMO2 FPS 322.4 / 316.0 Return to Castle Wolfenstein FPS 152.6 Super Pi (1M ) Second 43s CPUZ System / CPU Clock Mhz 201.0 / 3215.8

BIOS
Type Version size Description Date Download BIOS       2006-3-3 Download Link

Driver
Type Version size Description Date Download LAN   12M OnBboard Realtek PCI Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link VGA   7.9M Onboard SiS SATA Controller Driver

os: Windows 2000

2006-4-4 Download Link Chipset   1.2M Intel 915 Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link

Manual
Type Version size Description Date Download Manual   868KB M/B For LGA 775 Pentium 4 Processor 2006-5-9 Download Link

Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
