945P

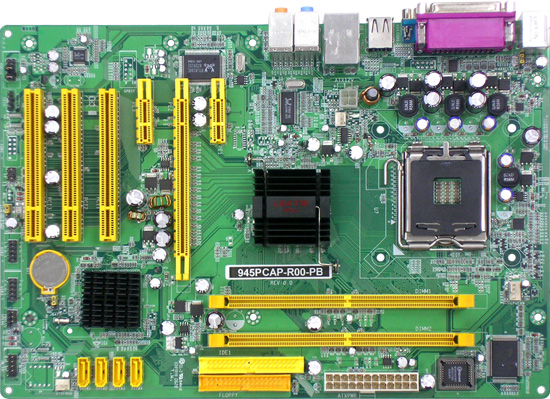

945PCAP

Intel 945P Express Chipset + ICH7 ICH Chipset. Intel LGA775 Conroe Processor . Support FSB 1066 / 800 / 533MHz. Dual Channel DDR2 667 / 533 Memory DIMMs. 1 PCI-Express x16 Slots Design. Support 4 Serial ATA2 Devices. 4+4 USB2.0 Connectors Embedded. 10 / 100 LAN Supported. AC 97 8 Channel Audio CODEC. CPU Vcore 7-Shift , Bi-turbo Tech.,CPU Smart Fan. ATX Form Factor.
LGA775 Intel Core 2 Duo E Series 65nm Processor with Shared 4MB L2 Cache Supported Innovative design which meets the world,s most advanced 65 nanometer Chip-Making Process technology based Intel Core 2 Duo E6700, E6600, E6400, E6300, E4200 and beyond Processors with and embedded 4MB / 2MB L2 Cache for demanding usage of Home Networking and Game Enthusiasts.   INTEL 945P Express Chipset and ICH7 Chipset The Intel 945P Express Chipset which is one of the members of Intel 945 Express Chipset Family that delivers outstanding system performance through high-bandwidth interfaces such as dual-channel DDR2 memory, 1066 / 800 MHz system bus, PCI Express* x16 graphics port and PCI Express x1 I/O ports, next generation Serial ATA and Hi-Speed USB 2.0 connectivity.   Bi-turbo Tech. / the Hardware Dynamic Over Clocking Function With monitoring the changes of CPU electric current to define the precision activating moment of CPU over-clocking, Jetway Bi-turbo technology offers the flexibilities of hardware dynamic over-clocking with both intelligent automatic mode and power-manual mode for the balance of computing performance and reliability. Without complex settings from system BIOS, Bi-turbo provides the seeing promoted system performance for anyone by simple and intuitional BIOS setting. Besides the adjustments of "Current CPU Clock", Bi-turbo technology offers more flexible ways to choose the over-clocking range the activation of over-clocking by actually CPU hardware loading you defines.   CPU Smart Fan / the Noise Restrained System It,s never been a good idea to sacrifice the sound effects for gaining the performance you need. CPU Smart Fan Noise Restrained System is the answer to all the noise restrained needed high performance computing system, the system will automatically increase the fan speed when CPU operating loading is high, after the CPU is in normal operating condition, the system will low down the fan speed for the silent operating environment. The system can provide the much longer life cycle for both CPU and the system fans for game use and business requirements.   CPU Vcore Shift / Shift to the scalabilities and flexibilities The adjustable voltage for CPU Vcore can be upgraded over 13 stages for the precisely hardware dynamic over-clocking of demanding computing performance.


Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    Intel Pentium 4 Prescott 3.4G ( C1E disable ) DRAM:                         PMI SAMSUNG 512 M DDR2-533 X 2 1Gbyte Memory VGA Card: On Board VGA / Nvidia Geforce 6600XT 128M (1024X768X32bit Color. driver 7772 ) 775GT5 driver 8194 Hard Disk Driver:   Seagate Barracude 7200.7 SATA150 BIOS:                      BIOS Load Optimal Default . disable by turbo mode OS:                             Windows XP Professional (SERVICE PACK 2) 945GDAG + 6600GT 3D Mark 2001SE 17944 3D Mark 2003 8737 3D Mark 2005 3660 AQUAMRK3 (GFX / CPU) 54969 ( 7737 / 9492 )  PCMark2004  System / CPU / Memory 5225 / 5314 / 5108  Graph / HDD 4209 / N/A  Content Creation Winstone 2004 31.8  Business Winstone 2004 21.8  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 12000 / 44900  Business/Hi-end Graphic Winmark 749 / 1420 SISMark 2004 : SISMark Rating (Internet Content Creation / Office Productivity) SISMark 2004 209 ( 228 / 192 ) 3D Creation / 2D Creation 215 / 280 / web publication 196 Communication / Document Creation 182 / 199 /Data Analysis 194 SISOFT Sandra 2005 :1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 10199 Whetstone FPU iSSE2 FLOPS 4228 / 7024 2.Int/Float Buffered iSSE2 MB/S 4906 / 4909 3.Integer/Floating-Point iSSE2 IT/S 24914 / 32958 UT2003 Benchmark FPS 242.59 / 83.35 DOOM3 FPS 74.6 Super Pi (1M) Second 38s CPU System / MEMORY / CPU Mhz


BIOS
Type Version size Description Date Download BIOS 06 512KB Add A4Tech keyboardбжs Patch Code. 2007-12-5 Download Link BIOS 06 512KB Add A4Tech keyboardбпs Patch Code 2007-12-5 Download Link

Driver
Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Chipset   1.28M Intel 945 Chipset Driver For VISTA

os: Windows VISTA 32 bit / 64bit

2007-2-7 Download Link Other1   7.9M Onboard SiS SATA Controller Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Raid   19M Intel Raid Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link LAN   11M Onboard Marvell Lan Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Chipset   1.2M Intel 945 Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link

 Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-9-22 Download Link
