965 Series

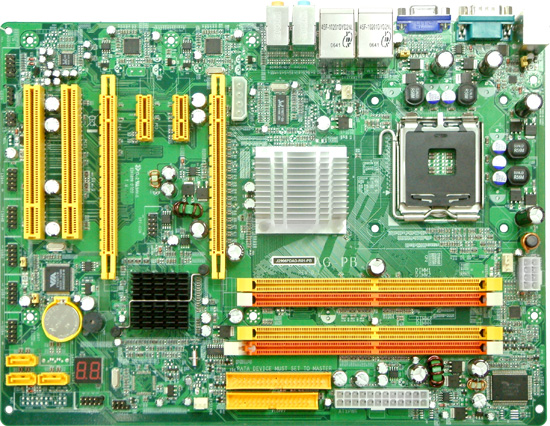

966GDAGE

966GDAGE Intel G965 Express Chipset + ICH8 Chipset . Intel LGA775 Conroe Processor . Intel Clear Video Technology & Intel GMA 3000 GFX Core . Support FSB 1066MHz Dual channel DDR2 800 / 667 / 533 Memory DIMMs . Support Bi-GPU-Link with 2 PCI-Express x16 Slots Design . Support 3 Serial ATA2 Devices . Support 1 ATA-100 IDE Devices Support 2 IEEE1394 Devices (Optional) . 10 USB2.0 Connectors Embedded. Gigabit LAN Supported . AZALIA 8 Channel Audio CODEC. CPU Vcore 7-Shift. ATX Form Factort
LGA 775 Intel Core 2 Duo E Series 65nm Processor with Shared 4MB L2 Cache Supported
Innovative design which meets the world,s most advanced 65 nanometer Chip-Making Process technology based Intel Core 2 Duo E6700, E6600, E6400, E6300, E4200 and beyond Processors with and embedded 4MB / 2MB L2 Cache for demanding usage of Home Networking and Game Enthusiasts.

INTEL G965 Express Chipset and ICH8 Chipset
The Intel G965 Express Chipset incorporates Intel Fast Memory Access, an updated Memory Controller Hub (MCH) backbone architecture that significantly increases overall system performance through the optimization of available bandwidth and reduction of memory access latency. This updated MCH with Intel Fast Memory Access also includes wider internal data buses that support dual-channel DDR2 memory technology at 800 MHz (up to 12.8 GB/s of peak memory bandwidth) for greater platform performance and memory flexibility.It,s also embedded Intel Clear Video Technology which is designed to address the needs of today,s digital home consumers who demand for high-quality video playback and sharp image quality from their PC with advanced processing capabilities to enable a richer entertainment experience. In addition to stutter-free playback and vibrant color controls, this technology delivers crystal clear images without the imperfections and artifacts usually associated with PC-based video content.

Intel Graphics Media Accelerator 3000
3D enhancements enable greater game compatibility with support for Hardware T&L, and improved realism with support for Microsoft DirectX* 9.0c Shader Model 3.0, OpenGL* 1.5, and floating point operations. Intel graphics technology also support the highest levels of the Microsoft Vista Aero experience.

CPU Thermal Throttling / The Anti-superheated CPU protection Technology
To prevent the increasing heat from damaging of CPU while the activation of the Bi-turbo technology, the CPU Thermal Throttling Technology will make CPU be idling from 87.5% to 12.5% by manually preset CPU operating temperature from 40oC to 90oC. When the system senses the climbing operating temperature of CPU over the value preset, CPU Thermal Throttling Technology will narrow the operating bandwidth of CPU actively to low down the temperature to the value preset as the perfect protection system of hardware dynamic over-clocking technology.

Bi-GPU-Link / Advanced Dual PCI Express Graphics Interfaces Solutions
With the innovative one PCI Express x16 slot and one Opened-PCI-Express x4 slot design, the G945 Express chipset based motherboard offers with two PCI Express graphics interfaces with full bandwidth of 16 lanes and quarter bandwidth of 16 lanes for the latest released PCI Express x16 compatible VGA cards of both NVIDIA & ATI. By running dual PCI-Express graphics cards simultaneously, this motherboard provides the ability to connect to as many as four separate displays.

CPU Smart Fan / The Noise Restrained System
It,s never been a good idea to sacrifice the sound effects for gaining the performance you need. CPU Smart Fan Noise Restrained System is the answer to all the noise restrained needed high performance computing system, the system will automatically increase the fan speed when CPU operating loading is high, after the CPU is in normal operating condition, the system will low down the fan speed for the silent operating environment. The system can provide the much longer life cycle for both CPU and the system fans for game use and business requirements.

OC-CON high-polymer solid electrolysis aluminum capacitors embedded
The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC_CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too.

CPU Vcore Shift / Shift_to the scalabilities and flexibilities
The adjustable voltage for CPU Vcore can be upgraded over 8 stages for the precisely hardware dynamic over-clocking of demanding computing performance.

Specification CPU LGA 775 Socket for FSB 1066 / 800 / 533 MHz Intel® Core 2 Duo E Series Processor With 4MB Shared L2 Cache (Code Name: Conroe). Chipset INTEL G965 Express Chipset + ICH8 Chipset . INTEL CLEAR VIDEO TECHNOLOGY . Memory 4 * 240-pin DIMM Sockets for unbuffered Dual DDR2 800 / 667 / 533 SDRAM up to 8 GB Expansion Slot 2 * 32-bit PCI Slots / 2 * PCI EXPRESS x1 / 2 * PCI EXPRESS X16 . Storage Embedded JMicronJM20330 Chipset Supports 2 * Ultra DMA 133 / 100 / 66 IDE Devices Embedded INTEL ICH8 Chipset Supports 3 Serial ATA2 Devices. Audio Realtek ALC888 Azalia 8-Channel Audio CODEC Ethernet LAN Realtek RTL811B PCI-E Gigabit NIC . USB Embedded 10 * High Speed USB @ 480 Mbit / s Special Features Advanced Power Design that supports the latest LGA 775 Conroe Processor. Embedded Intel GMA 3000 GFX Core . Embedded OC-CON high-polymer solid electrolysis aluminum capacitors. "IMAGE IT!" System Backup Software and "ProMagicPLUS!" System Recovery System. Rear Panel I / O 4 * High Speed USB Connectors @ 480 Mbit / s. 1 * PS / 2 Mouse & 1 * PS/2 Keyboard.. 1 * PJ45l Connector. 1 * VGA Port / 1 * COM Port . 1 * Audio I / O . Internal I / O 3 * High Speed USB Connectors @ 480 Mbit / s for 6 USB 2.0 Ports. CPU / Chassis Fan Connectors . 1 * 12V 4-pin ATX Power Connector and 1 * 24-pin ATX Power Connector. CD / AUX Audio in. 2 * IEEE1394 port ( Optional ) . 1 * IR Header . BIOS Award 4 MB Flash ROM Form Factor ATX Form Factor

 Test Report Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                       Intel Pentium D 830 3.0G ( C1E disable ) DRAM:                          ADATA E5108AE DDR2-667 X 2 1Gbyte Memory VGA Card: Nvidia Geforce 6800XT 128M (1024X768X32BIT Color) Hard Disk Driver:   Seagate Barracude 7200.7 SATA150 BIOS:                      BIOS Load Optimal default OS:                             Windows XP Professional (SERVICE PACK 2)   965GDAG 3D Mark 2001SE 4430 3D Mark 2003 1142 3D Mark 2005 N / A 3D Mark 2006 N / A AQUAMRK3 (GFX / CPU) 6650 ( 684 / 11378 )  PCMark2004  System / CPU / Memory 5114 / 6041 / 5032  Graph / HDD 1435 / N/A  Content Creation Winstone 2004 30.1  Business Winstone 2004 20.4  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 10201 / 38700  Business/Hi-end Graphic Winmark 280 / 866 SISMark 2004 : SISMark Rating (Internet Content Creation / Office Productivity) SISMark 2004 215 ( 249 / 185 ) 3D Creation / 2D Creation 218 / 298 / web publication 238 Communication / Document Creation 173 / 194 /Data Analysis 190 SISOFT Sandra 2005 :1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 16300 Whetstone FPU iSSE2 FLOPS 7641 2.Int/Float Buffered iSSE2 MB/S 4918 / 4905 3.Integer/Floating-Point iSSE2 IT/S 33872 / 40150 UT2003 Benchmark FPS 55.01 / 25.63 DOOM3 FPS 2.6 Super Pi (1M) Second 42s CPU System / MEMORY / CPU Mhz 200.5 / 333 / 3006.8


BIOS
Type Version size Description Date Download BIOS 06 512KB Increase SATA HDD legacy support 2007-7-12 Download Link

 Driver
Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link LAN   11M OnBboard Realtek PCI-E Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008-8-27 Download Link Monitor     Hardware Monitoring Program

os: Windows 2000 , Winodws XP 32 bit

2006-8-23 Download Link Other1     Onboard VIA IDE controller Driver

os: Windows 2000 , Winodws XP 32 bit

2006-8-23 Download Link VGA     965 VGA Driver

os: Windows 2000, Windows XP 32 bit

2006-8-23 Download Link Chipset     965 Chipset Driver

os: Windows 2000 , Windows XP 32 bit , Windows 2003

2006-8-23 Download Link

Manual
Type Version size Description Date Download Manual 1.0 2.6M Intel P965 / G965 Express Chipset & Intel FW82801HB ICH Chipset Based M/B For LGA 775 Core 2 Duo Processor 2007-4-3 Download Link

Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2007-7-29 Download Link
