G31

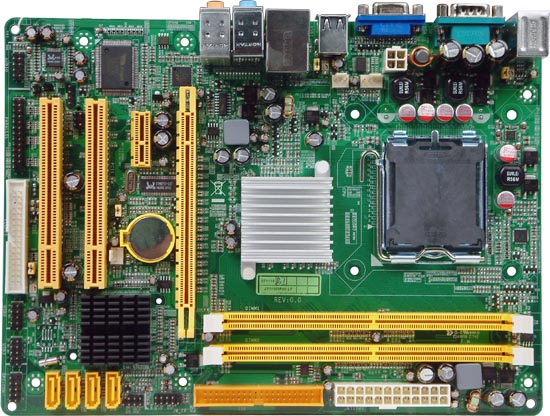

I31GM3

I31GM3 Intel G31 Express Chipset +Intel ICH7 Chipset Intel® Core 2 Duo and the Intel® Core 2 Quad processors Support FSB 1333MHz Dual Channel DDR2 800 / 667 / 533 Memory DIMMs Integrated GMA3100 Support 1 PCI-Express x16 Slot Design Support 4 Serial ATA2 Devices Support 1 ATA-100 IDE Devices 8 USB2.0 Connectors Embedded Gigabit LAN Supported HD 8 Channel Audio CODEC CPU Vcore 16-Shift Micro ATX Form Factor

LGA775 Intel Core Processor Family Supported
The Intel® Core processor family delivers unrivaled performance and breakthrough energy efficiency. For your extreme computing, the Intel core processor family delivers unrivaled performance and breakthrough energy efficiency, to let you enjoy revolutionary performance with vivid, high-definition experiences and multi-tasking responsiveness by state-of-the-art Intel dual-core and quad-core technologies (Core 2 Extreme, Core 2 Quad and Core 2 Duo Processors).

INTEL G31 Express Chipset and ICH7 Chipset
The Intel G31 Express Chipset supports new technologies such as 1066 MHz System Bus speed, next-generation 45nm dual- and quad-core processors, and DDR2 memory to deliver increased system bandwidth and improved performance. With built-in design headroom, Intel® Fast Memory Access (Intel® FMA) and Intel® Turbo Memory, platforms based on the Intel G31 Express Chipset enable best-of-class performance and offer the best value for performance desktop computing. Desktop PC platforms based on the Intel G31 Express Chipset, combined with either the Intel® Core2 Duo or Intel® Core2 Quad processor, deliver new technologies and innovative capabilities for enthusiasts and digital home consumers

INTEL Graphics Media Accelerator 3100
The Intel G31 Express Chipset Integrated GMA3100 enables enhanced 3D and high-definition video technologies for a better end-user experience. 3D enhancements enable greater flexibility and scalability and improved realism with support for Microsoft DirectX* 9.0c Shader Model 2.0, OpenGL* 1.5. Intel® Graphics also support the highest levels of the Windows Vista* Aero experience

CPU Thermal Throttling / The Anti-superheated CPU protection Technology
To prevent the increasing heat from damaging of CPU, the CPU Thermal Throttling Technology will make CPU be idling from 87.5% to 12.5% by manually preset CPU operating temperature from 40вJ to 90вJ. When the system senses the climbing operating temperature of CPU over the value preset, CPU Thermal Throttling Technology will narrow the operating bandwidth of CPU actively to low down the temperature to the value preset as the perfect protection system of hardware dynamic over-clocking technology.

OC-CON high-polymer solid electrolysis aluminum capacitors embedded
The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC_CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too.

CPU Vcore Shift / Shift_to the scalabilities and flexibilities
The adjustable voltage for CPU Vcore can be upgraded over 16 stages for the precisely hardware dynamic over-clocking of demanding computing performance.



Specification

CPU LGA 775 Socket for FSB 1333MHz Intel® ore 2 Quad, Core 2 Duo Processors Chipset INTEL G31 Express Chipset + ICH7 Chipset Memory 2 * 240-pin DIMM Sockets for unbuffered Dual DDR2 800 / 667 / 533 SDRAM up to 4 GB Expansion Slots 2 * 32-bit PCI Slots / 1 * PCI EXPRESS x16 /1 * PCI EXPRESS x1 Storage Embedded INTEL ICH7 Chipset Supports 2 * Ultra DMA 100 / 66 IDE Devices and 4 SATA devices Audio Realtek ALC883 Azalia 8-Channelбж Audio CODEC Ethernet LAN Marvell 88E8056B PCI Express Gigabit LAN USB Embedded 8 * High Speed USB @ 480 Mbit / s Special Features Advanced Power Design that supports the latest LGA 775 Core Processor Embedded OC-CON high-polymer solid electrolysis aluminum capacitors бзIMAGE IT!би System Backup Software and бзProMagicPLUS!би System Recovery System Rear Panel I / O 4 * High Speed USB Connectors @ 480 Mbit / s 1 * PS / 2 Mouse & 1 * PS/2 Keyboard 1 * RJ45 Connector 1 * Serial COM Port 1 * Audio I / O 1 * VGA connector Internal I / O 2 * High Speed USB Connectors @ 480 Mbit / s for 4 USB 2.0 Ports CPU / Chassis Fan Connectors; 1 * 12V 8-pin ATX Power Connector and 1 * 24-pin ATX Power Connector CD Audio in 1 * Serial Port Header 1 * Parallel Header BIOS Award 8MB SPI Flash ROM Form Factor Micro ATX Form Factor
 BIOS
Type Version size Description Date Download BIOS 02.1 1MB

Correction CPU Smart FAN.

2008-8-18 Download Link

Driver
Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link LAN   11M OnBboard Realtek PCI-E Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008-8-27 Download Link Other1   3.2M Onboard JMICRON Raid Controller

os: Windows 2000 , Winodws XP 32 bit

2007-8-16 Download Link Monitor   4.7M Hardware Monitoring Program

os: Windows 2000 , Winodws XP 32 bit

2007-8-16 Download Link VGA   10M Intel 3X VGA Driver

os: Windows XP 64 bit

2007-8-16 Download Link VGA   10M Intel 3X VGA Driver

os: Windows Vista 64 bit

2007-8-16 Download Link VGA   14M Intel 3X VGA Driver

os: Windows Vista 32 bit

2007-8-16 Download Link VGA   14M Intel 3X VGA Driver

os: Windows 2000, Windows XP 32 bit

2007-8-16 Download Link Chipset   3.6M Intel Chipset Driver

os: Windows 2000 , Windows XP 32 bit , Windows 2003

2007-8-16 Download Link

Manual
Type Version size Description Date Download Manual 2.0 579KB

Manual

2008-7-9 Download Link
