P31

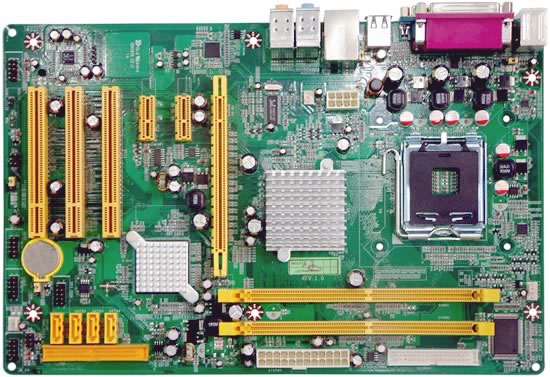

I31PA
LGA775 Intel Core Processor Family Supported
The Intel® Core™ processor family delivers unrivaled performance and breakthrough energy efficiency. For your extreme computing, the Intel core processor family delivers unrivaled performance and breakthrough energy efficiency, to let you enjoy revolutionary performance with vivid, high-definition experiences and multi-tasking responsiveness by state-of-the-art Intel dual-core and quad-core technologies (Core 2 Extreme, Core 2 Quad and Core 2 Duo Processors).
INTEL P31 Express Chipset and ICH7 Chipset
The Intel® P31 Express Chipset supports Intelбжs upcoming 45nm processors, enabling a scalable discrete platform for value conscious consumers. With a 1333 MHz system bus and DDR2 memory technology, the Intel® P31 Express chipset enables a scalable discrete platform for value conscious consumers.
CPU Thermal Throttling / The Anti-superheated CPU protection Technology
To prevent the increasing heat from damaging of CPU, the CPU Thermal Throttling Technology will make CPU be idling from 87.5% to 12.5% by manually preset CPU operating temperature from 40вJ to 90вJ. When the system senses the climbing operating temperature of CPU over the value preset, CPU Thermal Throttling Technology will narrow the operating bandwidth of CPU actively to low down the temperature to the value preset as the perfect protection system of hardware dynamic over-clocking technology.
CPU Smart Fan / The Noise Restrained System
Itбжs never been a good idea to sacrifice the sound effects for gaining the performance you need. CPU Smart Fan Noise Restrained System is the answer to all the noise restrained needed high performance computing system, the system will automatically increase the fan speed when CPU operating loading is high, after the CPU is in normal operating condition, the system will low down the fan speed for the silent operating environment. The system can provide the much longer life cycle for both CPU and the system fans for game use and business requirements.
CPU Vcore Shift / Shift to the scalabilities and flexibilities
The adjustable voltage for CPU Vcore can be upgraded over 13 stages for the precisely hardware dynamic over-clocking of demanding computing performance
Specification CPU Supports Intel® Core Processor Family (Core 2 Extreme, Core 2 Quad, Core 2 Duo Processors) FSB FSB 1333 MHz Chipset INTEL P31 Express Chipset + ICH7 Chipset Memory Dual Channel DDR2 memory technology 2 * 240-pin DIMM Slots Supports DDR2 800 / 667 non-ECC ,un-buffered memory Max. 4 GB Expansion Slots 3 * 32-bit PCI Slots 2 * PCI Express x1 1 * PCI Express x16 Storage
Embedded INTEL ICH7 Chipset
Supports 2 * Ultra DMA 100 IDE Devices 4 * Serial ATA2 3Gb/s connectors Audio Realtek ALC883 HD 8-Channelбж Audio CODEC Ethernet LAN Marvell 8E8056 PCI-E Gigabit NIC USB Embedded 8 * USB 2.0/1.1 Special Features Advanced Power Design that supports the latest LGA 775 Core Processor Embedded OC-CON high-polymer solid electrolysis aluminum capacitors бзIMAGE IT!би System Backup Software and бзProMagic PLUS!би System Recovery System Rear Panel I / O 4 * USB 2.0/1.1 ports 1 * PS / 2 Mouse port 1 * PS/2 Keyboard port 1 * RJ-45 port 1* Coaxial In/Out port 1 * Audio I/O port 1 * COM port&1 * Parallel port Internal I / O 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports CPU / Chassis Fan connectors; 1 * 8-pin ATX 12V Power connector 1 * 24-pin ATX Power connector CD / AUX Audio in 1 * HDMI_SPDIF connector 1 * Ultra DMA 133/100/66 IDE connector 1 * IR connector 1 * SPI-CON connector Front panel audio connector 1 * Serial Port of 9-pin block 1 * Floppy connector BIOS Award 8MB SPI Flash ROM Form Factor ATX Form FactorBIOS
Type Version size Description Date Download BIOS A01 1MB
First release for production
2008-4-10Driver
Type Version size Description Date Download Sound 44M Onboard ALC HD Sound Driver
os: Windows 2000 , Windows XP , VISTA
2008-8-28os: Windows 2000 , Windows XP , VISTA
2008-8-28os: Windows 98SE , 2000 , Windows XP , VISTA
2008-8-27os: Windows 2000 , Winodws XP 32 bit
2008-4-1os: Windows 2000 , Winodws XP 32 bit
2008-4-1os: Windows 2000 , Windows XP 32 bit , Windows 2003
2008-4-1Manual
Type Version size Description Date Download Manual 1.0 2.39MB
Manual
2008-5-5
