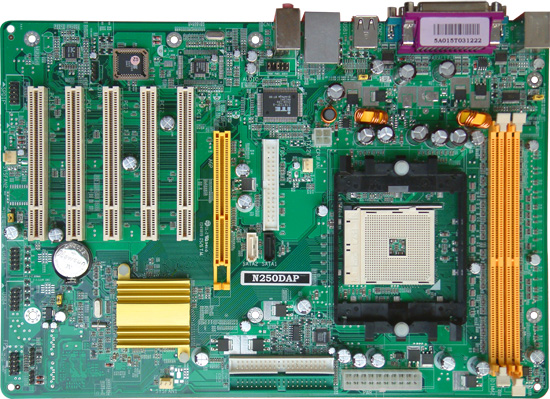

nForce3 250GB

N250DAS

nVIDIA nForce3 250/250Gb Chipset ,Support AMD Athlon64/Sempron 754-Pin at 800MHz 8x AGP VGA Mode Support DDR400 RAM Support SATA150 Support USB2.0 6 Channel Speaker. Onboard Giga LAN(N250DAG)

Support 64 bit AMD Athlon64,Sempron 754-Pin FCPGA proccessor support CPU Frequency 800MHZ
nVIDIA nForce3 250Gb (N250DAG Only) nForce3 250 Single Chipset
OnBoard Giga LAN (N250DAG Only)
Support 6-Channel Speaker
Extend AGP Slot Support 8X AGP
Support DDR266/DDR333DDR400 DDR SDRAM
PCЈѕ99 Ready & PCЈѕ99 Colorful I/O Ports Design
Support USB Controller & PS/2 Mouse , Standard IR (infrared) Function
Provide extra " three-wire" fans connectors
DRAM Voltage /AGP Voltage Minor Adjustable and Over Current /Under Valtage protection
JumperLess
Frequency Magic Setting
PC Health Monitoring On Post Screen
Magic Install
BIOS Write Protect function to avoid Virus crash data
CPU Over Temperature protect
BIOS Auto Detect CPU voltage
Y2K Compliant
ACPI Supporting For OS Directed Power Management

Modem Ring remote wake up RTC alarm wake up Wake on LAN For OS Support software suspend & power off Support Power Button Ride (Instant off or Delay 4 second power off)
Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    AMD K8 Athlon 64 3400+ ( 1024k L2 cache ) DRAM:                         TwinMOS hynix Hy5 du56822 CT 512M DDR400 X 2 (1Gbyte) Memory, VGA Card:        ATI RADEON 9800 PRO 256M (1024X768X32bit Color) Hard Disk Driver:   Seagate Barracude 7200.7 SATA150 BIOS:                      BIOS Load Optimal Default OS:                             Windows XP Professional (SERVICE PACK 2) 3D Mark 2001SE 19240 3D Mark 2003 5709 3D Mark 2005 2421 AQUAMRK 3 42733 ( 5646 / 8815 )  PCMark2004  System / CPU / Memory 4271 / 4097 / 3502  Graph / HDD 3900 / 4486  Content Creation Winstone 2004 30.9  Business Winstone 2004 24.9  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 13200 / 25900  Business/Hi-end Graphic Winmark 1030 / 1800 SISMark 2004 : SISMark Rating (Internet Content Creation / Office Productivity) SISMark 2004 170 ( 183 / 157 ) 3D Creation / 2D Creation 193 / 238 / Web publication 133 Communication / Document Creation 140 / 187 /Data Analysis 147 SISOFT Sandra 2005 :1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 9466 Whetstone FPU iSSE2 FLOPS 3625 / 4706 2.Int/Float Buffered iSSE2 MB/S 2727 / 2728 3.Integer/Floating-Point iSSE2 IT/S 21056 / 22717 UT2003 Benchmark (flyby/botmatch) FPS 259.31 / 93.17 Quake 3 DEMO1 / DEMO2 FPS 326.9 / 323.1 Return to Castle Wolfenstein FPS 175.1 Super Pi (1M) Second 41s CPU System / CPU Clock Mhz


 BIOS
Type Version size Description Date Download BIOS

Jetway has phased out this product.Please ask Jetway FAE for BIOS download when there is need.

2006-3-3

Driver
Type Version size Description Date Download Sound   40M OnBoard ALC Codec Sound Driver

os: Windows 2000 , Windows XP , VISTA

2007-5-23 Download Link Chipset   31M NF3 Chipset Driver for XP64

os: Windows XP 64 bit

2006-4-4 Download Link Chipset   9.1M NF3 Chipset Driver for 98SE/ME

os: Windows 98SE/ME

2006-4-4 Download Link Chipset   27M NF3 Chipset Driver for 2000/XP

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Other1   426K NF3 SUB 2.0 Driver

os: Windows 2000

2006-4-4 Download Link Other1   320K NF3 SATA Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link

Manual
Type Version size Description Date Download Manual   4.42M M/B For Socket 754 AMD Athlon64 Processo 2006-4-19 Download Link

Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
