nForce4-4x

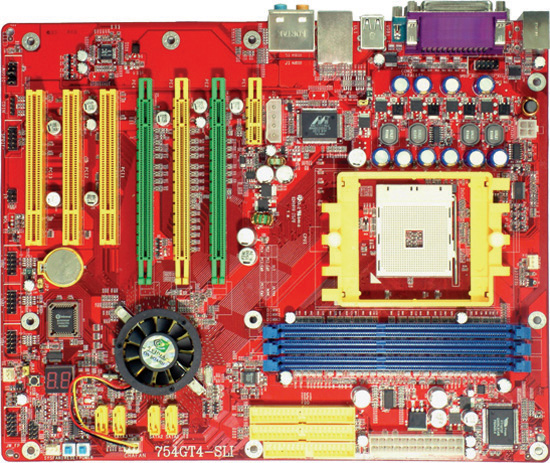

754GT4-SLI-G-OC

NVIDIA nForce 4 SLI MCP Chipset Support 64-bit AMD Sempron 64 processor Support HTT 800MHz Support Intuitional SLI Technology Single Channel DDR400 Memory DIMMs Support 4 Serial ATA2 Devices with RAID 0, 1, 0+1 Embedded DEBUG Port Support Hardware NV Firewall Ethernet LAN Supported AC 97 8 Channel Audio CODEC CPU Vcore 7-Shift ATX Form Factor

64-bit AMD Athlon 64 Processor with HyperTransport  Technology

AMD64, a revolutionary technology allowing the processor to run 32-bit applications at full speed while enabling a new generation of powerful 64-bit software applications. Hyper-Transport technology can increase overall system performance by removing I/O bottlenecks, increasing system bandwidth, and reducing system latency .



NVIDIA nForce 4 SLI MCP / The ultimate enthusiast platform

NVIDIA® nForce 4 SLI MCPs (media and communications processors) offer blistering graphics performance and overall PC performance for both AMD and Intel platforms.  With the power of SLI technology you get the ability to connect two NVIDIA SLI-Ready PCI Express graphics cards for mind-blowing gameplay with brilliant and intensive 3D graphics. The unique low-latency architecture of the NVIDIA nForce4 SLI MCPs offers one of the industry is best core-logic solution with outstanding performance and the latest technologies-SLI, PCI Express, secure high-speed networking, and high-performance storage-and ensures that your PC stays ready for the newest games, future applications, and next-generation PC specifications.



CPU Thermal Throttling / The Anti-superheated CPU protection Technology

To prevent the increasing heat from damaging of CPU while the activation of the Bi-turbo technology, the CPU Thermal Throttling Technology will make CPU be idling from 87.5% to 12.5% by manually preset CPU operating temperature from 40 Ск to 90 Ск . When the system senses the climbing operating temperature of CPU over the value preset, CPU Thermal Throttling Technology will narrow the operating bandwidth of CPU actively to low down the temperature to the value preset as the perfect protection system of hardware dynamic over-clocking technology.



Serial ATA2 with RAID

Serial ATA2 is an evolutionary replacement for the Parallel ATA physical storage interface. Users of the Serial ATA2 interface benefit from greater speed, simpler upgradeable storage devices and easier configuration. Integrated Serial ATA2 controller of high-speed data transfers at up to 300 MB/s for each port and optional available on different model is RAID 0, 1 and 0+1 support .



CPU Smart Fan / The Noise Restrained System

It is never been a good idea to sacrifice the sound effects for gaining the performance you need. CPU Smart Fan Noise Restrained System is the answer to all the noise restrained needed high performance computing system, the system will automatically increase the fan speed when CPU operating loading is high, after the CPU is in normal operating condition, the system will low down the fan speed for the silent operating environment. The system can provide the much longer life cycle for both CPU and the system fans for game use and business requirements .



CPU Vcore 7-Shift / Shift_to the scalabilities and flexibilities The adjustable voltage for CPU Vcore can be upgraded in seven stages for the precisely hardware dynamic over-clocking of demanding computing performance .

Specification Performance List   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                     AMD K8 Athlon64 3200+ Support (Socket 754, 512k L2 cache)  DRAM:          KingMax MPTC220D-38HT 512MB DDR500 X 2 (1Gbyte) Memory VGA Card :         GeForce6600GT 128M PCI-E VGA CARD X 2 (1024X768X32BIT Color) Hard Disk Driver: Seagate Barracude 7200.7 SATA150 BIOS:             Award Optimal default OS:                 Windows XP Professional (SERVICE PACK 2)          Ultra / 200/200  Dual channel STD / 200/200  Dual channel 3D Mark 2001SE 18286 18280 3D Mark 2003 8101 8137 3D Mark 2005 3532 3545 AQUAMRK3 53014 (7545 / 8912) 53336 (7569 / 9021) PCMark2004 System / CPU / Memory 4072 / 3846 / 4401 4089 / 3854 / 4427 Graph / HDD 4436 / 4663 4391 / 4619 Content Creation Winstone 2004 31.5 31.7 Business Winstone 2004 22.8 23 Winbench 99 V2.0: Business/Hi-end Disk Winmark99 18700 / 41000 20300 / 41900 Business/Hi-end Graphic Winmark 1240 / 1930 1170 / 1990 SISMark 2004: SISMark Rating(Internet Content Creation / Office Productivity ) SISMark 2004 175 (184 / 167) 178 (184 / 172) 3D Creation / 2D Creation 169 / 255 170 / 228 / Web publication 163 161 Communication / Document Creation 179 / 175 191 / 175 / Data Analysis 150 153 SISOFT Sandra 2004 : 1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 8576 8574 Whetstone FPU iSSE2 FLOPS 3293 / 4275 3279 / 4256 2.Int/Float Buffered iSSE2 MB/S 4828 / 4828 4640 / 4643 3.Integer/Floating-Point SSE2 IT/S 19137 / 20650 19117 / 20669 UT2003 Benchmark (flyby/botmatch) 247.92 / 83.34 253.46 / 85.33 Quake3 DEMO1 / DEMO2 FPS N / A N / A Return to Castle Wolfenstein FPS 75.0 75.4

BIOS
Type Version size Description Date Download BIOS   512KB

Jetway has phased out this product.Please ask Jetway FAE for BIOS download when there is need.

2006-5-11

 Driver
Type Version size Description Date Download Sound   40M OnBoard ALC Codec Sound Driver

os: Windows 2000 , Windows XP , VISTA

2007-5-23 Download Link Chipset   23M NF4 Chipset Driver For VISTA

os: Windows VISTA 32 bit

2007-4-10 Download Link Chipset   24M NF4 Chipset Driver For VISTA

os: Windows VISTA 64bit

2007-4-10 Download Link Chipset   35M NF4 Chipset Driver

os: Windows XP 64bit

2006-4-4 Download Link Chipset   34M NF4 Chipset Driver

os: Winfwos 2003

2006-4-4 Download Link Chipset   37M NF4 Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Raid   966K NF4 Raid Driver

os: Winodws 2000 ,Windows XP 32 bit

2006-4-4 Download Link

 Manual
Type Version size Description Date Download Manual   41M M/B For 64-bit AMD Socket 754 Processor 2006-4-19 Download Link

Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
