nForce4 SLI

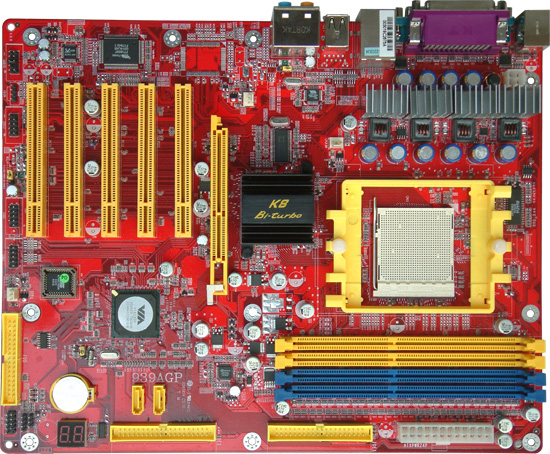

939AGP-EC

E-IDE Devices S-ATA Devices AGP Slots Gigabit LAN Ports Memory DIMMs 32-bit PCI Slots. IEEE 1394a Connectors. 10 / 100 LAN Ports Serial Ports Parallel Ports PS / 2 Connectors D-sub 15-pin Connector Multi-User Supported. AC 97 Multi-Ch Audio. USB 2.0 Connectors
64-bit AMD AthlonTM 64 Processor with HyperTransportTM Technology The AMD Athlon 64 processor is the first and only Windows compatible 64-bit PC processor. It runs on AMD64, a revolutionary technology allowing the processor to run 32-bit applications at full speed while enabling a new generation of powerful 64-bit software applications. HyperTransport?technology can increase overall system performance by removing I/O bottlenecks, increasing system bandwidth, and reducing system latency..   Bi-turbo / The Hardware Dynamic Over-clocking Technology With monitoring the changes of CPU electric current to define the precision activating moment of CPU over-clocking, Jetway Bi-turbo technology offers the flexibilities of hardware dynamic over-clocking with both intelligent automatic mode and power-manual mode for the balance of computing performance and reliability. Without complex settings from system BIOS, Bi-turbo provides the seeing promoted system performance for anyone by simple and intuitional BIOS setting. Besides the adjustments of "Current CPU Clock", Bi-turbo technology offers more flexible ways to choose the over-clocking range of the activation of over-clocking by actually CPU hardware loading you define.   CPU Thermal Throttling / The Anti-superheated CPU protection Technology To prevent the increasing heat from damaging of CPU while the activation of the Bi-turbo technology, the CPU Thermal Throttling Technology will make CPU be idling from 87.5% to 12.5% by manually preset CPU operating temperature from 40oC to 90oC. When the system senses the climbing operating temperature of CPU over the value preset, CPU Thermal Throttling Technology will narrow the operating bandwidth of CPU actively to low down the temperature to the value preset as the perfect protection system of hardware dynamic over-clocking technology.   Debug Port / The Professional Hardware System Monitoring System Being bugged of abnormal system failure through the tossed and turned nights no more, the embedded Hardware Debug Port offers you the real-time visual system healthy for the demanding usage of computing. No more bugging by unknown system failure and no more time wasted in the first moment of 24-hour nonstop ping business computing, the embedded Debug Port will turn you into a well training hardware professional with the seeing system situation..   CPU Smart Fan / The Noise Restrained System It,s never been a good idea to sacrifice the sound effects for gaining the performance you need. CPU Smart Fan Noise Restrained System is the answer to all the noise restrained needed high performance computing system, the system will automatically increase the fan speed when CPU operating loading is high, after the CPU is in normal operating condition, the system will low down the fan speed for the silent operating environment. The system can provide the much longer life cycle for both CPU and the system fans for game use and business requirements   OC-CON high-polymer solid electrolysis aluminum capacitors embedded The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC_CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too.    7-Shift / Shift_to the scalabilities and flexibilities The adjustable voltage for CPU Vcore can be upgraded in seven stages for the precisely hardware dynamic over-clocking of demanding computing performance.


Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    AMD K8 Athlon 64 3500+ ( 512k L2 cache ) Disable Bi-turbo function DRAM:                         KingMPTC220D-38HT DDR-500 512M X 2 (1Gbyte) Memory VGA Card:        Geforce6600GT 128M AGP / Geforce 6600 GT 128M PCIE VGA CARD (1024X768X32bit Color) Hard Disk Driver:   Seagate Barracude 7200.7 SATA150 BIOS:                      BIOS Load Optimal Default OS:                             Windows XP Professional (SERVICE PACK 2) 3D Mark 2001SE 18175 3D Mark 2003 7852 3D Mark 2005 3320 AQUAMRK3 52888 ( 7341 / 9452 )  PCMark2004  System / CPU / Memory 4090 / 3877 / 5015  Graph / HDD 3930 / 4630  Content Creation Winstone 2004 28.9  Business Winstone 2004 23.7  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 19800 / 43000  Business/Hi-end Graphic Winmark 1050 / 1666 SISMark 2004 : SISMark Rating (Internet Content Creation / Office Productivity) SISMark 2004 178 ( 184 / 172 ) 3D Creation / 2D Creation 171 / 228 / Web publication 159 Communication / Document Creation 181 / 177 /Data Analysis 158 SISOFT Sandra 2005 :1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 8582 Whetstone FPU iSSE2 FLOPS 3288 / 4260 2.Int/Float Buffered iSSE2 MB/S 5567 / 5507 3.Integer/Floating-Point iSSE2 IT/S 19119 / 20668 UT2003 Benchmark FPS 261.18 / 88.57 DOOM3 FPS 72.5 Super Pi (1M) Second 43s CPU System / MEMORY / CPU Mhz


 BIOS
Type Version size Description Date Download BIOS 08 512M Fix winbond W39V040BP FLASH ROM something boot hang 2006-6-24 Download Link

 Driver
Type Version size Description Date Download Sound   40M OnBoard ALC Codec Sound Driver

os: Windows 2000 , Windows XP , VISTA

2007-5-23 Download Link LAN   6.6M Onboard VIA 6103 Lan Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Other1   10M USB 2.0 Port Driver

os: Windows 2000

2006-4-4 Download Link Chipset   7.4M VIA Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link

 Manual
Type Version size Description Date Download Manual 2.0 4.63MB USER IS MANUAL M/B For Socket 939 64-bit & Dual Core Ready AMD Athlon64FX Processor 2006-9-7 Download Link

 Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-7-31 Download Link
