P4M890

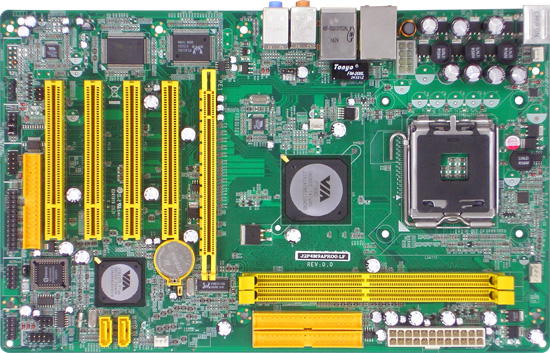

P4M9AP

Support Intel LGA775 Conroe Processor . VIA P4M890 + VT8237RP. Support FSB 1066 / 800 / 533MHz. Single Channel DDR2 533 / 400 Memory DIMMs. 1 PCI Express x16. 1 PCI Express x 1 , 2 32-bit PCI . Support 4 IDE and 2 Serial ATA Devices with RAID. 8 USB2.0 Connectors Embedded. AC 97 6 Channel Audio CODEC VIA 10/100 LAN Supported. Micro ATX Form Factor.
LGA775 Intel Core 2 Duo E Series 65nm Processor with Shared 4MB L2 Cache Supported Innovative design which meets the world,s most advanced 65 nanometer Chip-Making Process technology based Intel Core 2 Duo E6700, E6600, E6400, E6300, E4200 and beyond Processors with and embedded 4MB / 2MB L2 Cache for demanding usage of Home Networking and Game Enthusiast.   VIA P4M890 Chipset and VT8237R Chipset deliver the Reliability and I/O Flexibility By harnessing the advanced VIA StepUp memory controller technology, motherboards based on the VIA P4M890 can support either DDR or DDR2 memory modules on the same motherboard, providing users the flexibility to use whatever memory standard best suits their requirements. The VIA P4M890 features a high bandwidth V-Link bus to allow communication between the chipset,s North and South bridges at 533MB/sec. When combined with solutions such as the market-leading VIA VT8237R South Bridge and a broad array of VIA companion chips, the VIA P4M890 provides a comprehensive range of storage, multimedia and connectivity features, including native Serial ATA with RAID functions, 6-channel Audio, 10 / 100 Ethernet, and USB2.0.      Advanced Memory Controller
VIA,s acclaimed FastStream64 memory controller enables lightening fast memory access speeds and optimal system performance, supporting up to 2GB of DDR2 533, 400 memory DIMMs at P4M890DMP motherboard delivered by Jetway.   Pro Magic Plus System Recovery Software Embedded It provides complete system protection for your computer, no matter whether it is virus infection, system disorder or confusion, or data damage. Restore important data back right away, allowing your system to be operated under a safe environment. This amazing software not only provides convenient instant restoration, but also brings data back to the preferred state at any specific time point as you wish. Moreover, it combines several other functions such as anti-virus, backup software, uninstall software, multi-booting etc. to satisfy your needs of all sorts of system protections. No more worries on new virus or system failure.   Image IT System Back-up Software Embedded Image It can help you backup the whole system and data, and restore them instantly whenever the data on HD is destroyed, or even the HD partitions have been lost. You can also record the image file on a CD, and restore your system in an easily way. You needn it worry about the complex instruction.

Specification Performance List                                   The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:                    Intel celeron 2.53G MEMORY :                Winter ddr2-667 512mb*2 VGA Card:        Ati x1300pro 256mb Hard Disk Driver:   Samsung sata 80gb BIOS:                      v. p4m9ap a01 09-11-2006 OS:                             Windows XP Professional (SERVICE PACK 2) 3D Mark 2001SE 1317 3D Mark 2003 6310 3D Mark 2005 3038 AQUAMRK3 3038  PCMark2004  System / CPU / Memory 2698 / 2922 / 2615  Graph / HDD 2915 / 4632  Content Creation Winstone 2004 19.8  Business Winstone 2004 15.6  Winbench 99 V2.0:  Business/Hi-end Disk Winmark99 40900  Business/Hiend Graphic Winmark 288 / 754 SISMark 2004 : SISMark Rating (Internet Content Creation / Office Productivity) SISMark 2004 125 / 100 3D Creation / 2D Creation 110 / 150 /Web Publication 117 Communication / Document Creation 108 / 103 /Data Analysis 90 SISOFT Sandra 2004 : 1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark 1.Dhrystone ALU MIPS 5650 Whetstone FPU iSSE2 FLOPS 4639 2.Int/Float Buffered iSSE2 MB/S 2621 / 2625 3.Integer/Floating-Point iSSE2 IT/S 14362 / 16390 UT2003 Benchmark (flyby/botmatch) FPS 140.63 / 4435 Quake3 DEMO1 / DEMO2 FPS 196.2 / 193 Return to Castle Wolfenstein FPS 73.4 Super Pi (1M ) Second 70.5 CPUZ System / CPU Clock Mhz

BIOS
Type Version size Description Date Download BIOS A06 512KB 1. Amendment run testing program (memorytest + V1.7 version) failure 2007-7-10 Download Link


Driver
Type Version size Description Date Download Sound   8M Onboard VIA Sound Codec Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Raid   245K Onboard VIA SATA/Raid Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link LAN   6.6M OnBboard VIA 6103 Lan Driver

os: Windows 98 , Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Other1   10M USB 2.0 Port Driver

os: Windows 2000

2006-4-4 Download Link VGA   20M VIA PM800 VGA Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link Chipset   7.4M VIA Chipset Driver

os: Windows 2000 , Windows XP 32 bit

2006-4-4 Download Link

Manual
Type Version size Description Date Download Manual 2.0 4.2M VIA P4M890 Chipset & VIA VT8237R Plus Chipset M/B For LGA775 Conroe & Dual Core Ready Intel Pentium-D Processor 2006-9-29 Download Link

Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2006-8-24 Download Link
