GeForce7050/nFoce610i

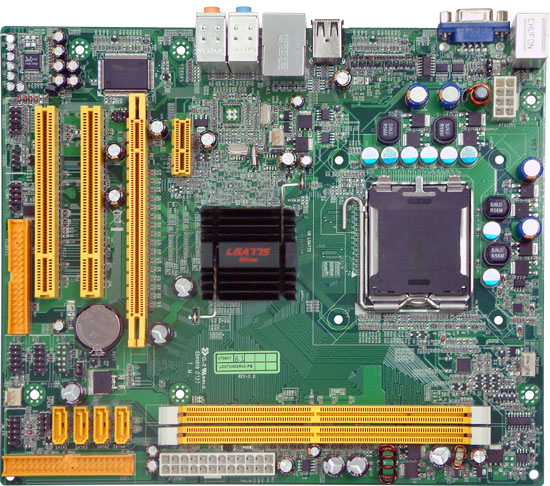

IN73M2-VS

IN73M2-VS NVIDIA GeForce7050/nForce610i (MCP73V) Chipset Support Intel LGA775 Core 2 Duo Processor Integrated Geforce 7050 GFX Core processor Support FSB 1333/1066/800MHz Advanced 4-Phase PWM Design TWO DDR2 667 Memory DIMMs Supported Support 4 Serial ATA2 Devices with RAID 0, 1 10 / 100 LAN Supported AC97 6 Channel Audio CODEC CPU Vcore 7-Shift Micro ATX Form Factor


LGA775 Intel Core Processor Family Supported
The Intel® Core  processor family delivers unrivaled performance and breakthrough energy efficiency. For your extreme computing, the Intel core processor family delivers unrivaled performance and breakthrough energy efficiency, to let you enjoy revolutionary performance with vivid, high-definition experiences and multi-tasking responsiveness by state-of-the-art Intel dual-core and quad-core technologies (Core 2 Extreme, Core 2 Quad and Core 2 Duo Processors).

NVIDIA GeForce7050/nForce610i (MCP73V) chipset
These chips are supposed to run the Microsoft Windows Vista Premium powered machine and they also support DVI out. The integrated graphics is based on Geforce 7 technology and it supports DirectX 9.0c and Shader model 3.0. Ramdac works at 300 MHz that is enough for 1920x1440 resolution at 75 Hz. The various boards support Nview multi display technology and VGA combinations are possible.

CPU Thermal Throttling / The Anti-superheated CPU protection Technology
To prevent the increasing heat from damaging of CPU, the CPU Thermal Throttling Technology will make CPU be idling from 87.5% to 12.5% by manually preset CPU operating temperature from 40вJ to 90вJ. When the system senses the climbing operating temperature of CPU over the value preset, CPU Thermal Throttling Technology will narrow the operating bandwidth of CPU actively to low down the temperature to the value preset as the perfect protection system of hardware dynamic over-clocking technology.

Pro Magic Plus System Recovery Software Embedded
Restore important data back right away, allowing your system to be operated under a safe environment. This amazing software not only provides convenient instant restoration, but also brings data back to the preferred state at any specific time point as you wish. Moreover, it combines several other functions such as anti-virus, backup software; uninstall software, multi-booting etc. to satisfy your needs of all sorts of system protections. No more worries on new virus or system failure!

PCI Express Buses
The PCI Express x16 graphics delivers up to 4 GB/s per direction, 3.5 times more bandwidth than AGP8X and up to 8 GB/s concurrent bandwidth. PCI Express x1 I/O offers 500 MB/s concurrently, over 3.5 times more bandwidth than PCI at 133 MB/s, tackling the most demanding multimedia tasks nowadays.

CPU Vcore 7-Shift / Shift_to the scalabilities and flexibilities

The adjustable voltage for CPU Vcore can be upgraded in 31 stages for the precisely hardware dynamic over-clocking of demanding computing performance


Specification CPU LGA 775 Socket for FSB 1333/1066 / 800 MHz Intel® Core Processor Family (Core 2 Exteme, Core 2 Quad, Core 2 Duo Processors Chipset NVIDIA GeForce7050/nForce610i (MCP73V) single chipset Memory 2 * 240-pin DIMM Sockets for unbuffered DDR2 667 SDRAM up to 4 GB Expansion Slots 2 * 32-bit PCI Slots / 1* PCI EXPRESS x16 Slots / 1* PCI EXPRESS x1 Slots Storage 2 * Ultra DMA 133 / 100 / 66 IDE Devices Support Embedded GeForce70500/nForce610i Chipset Supports 4 Serial ATA2 Devices with RAID Functions. Audio Realtek ALC662 6-Channel Azalia Audio CODEC Ethernet LAN Realtek RTL8201CL 10M / 100M LAN USB Embedded 10 * High Speed USB @ 480 Mbit / s Special Features Advanced Power Design that supports the latest LGA775 CPU бзIMAGE IT!би System Backup Software and бзProMagicPLUS!би System Recovery System Rear Panel I / O 4 * High Speed USB Connectors @ 480 Mbit / s 1 * PS / 2 Mouse & 1 * PS/2 Keyboard 1 * RJ45 Connector 1 * Audio I / O 1 * VGA Port Internal I / O 3 * High Speed USB Connectors @ 480 Mbit / s for 6 USB 2.0 Ports CPU / Chassis Fan Connectors; 1 * 12V 8-pin ATX Power Connector and 1 * 24-pin ATX Power Connector CD / AUX Audio in 1 * Serial Port Header BIOS Award 4MB SPI Flash ROM Form Factor Micro ATX Form Factor

BIOS
Type Version size Description Date Download BIOS A04 1MB 1. Update NVMM 4.081.23.
2. Support Intel 45nm CPU.
2008-2-29 Download Link BIOS A03 1MB

1. To solve the irregular flashes of indicator light when using the Win2 KB-827D keyboard.
2. To solve the system failure when plugging only USB keyboard to enter CMOS Setup.
3. Update NVMM4.074.29.

2008-2-1

Driver
Type Version size Description Date Download Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link Sound   44M Onboard ALC HD Sound Driver

os: Windows 2000 , Windows XP , VISTA

2008-8-28 Download Link LAN   11M OnBboard Realtek PCI-E Lan Driver

os: Windows 98SE , 2000 , Windows XP , VISTA

2008-8-27 Download Link Chipset   85M Nvidia N73 Chipset Driver

os: Windows VISTA 64bit

2008-2-15 Download Link Chipset   72M Nvidia N73 Chipset Driver

os: Windows VISTA 32 bit

2008-2-15 Download Link Chipset   92M Nvidia N73 Chipset Driver

os: Windows XP 64 bit

2008-2-15 Download Link Chipset   84M Nvidia N73 Chipset Driver

os: Windows 2000 , Windows XP 32 bit , Windows 2003 32bit

2008-2-15 Download Link Other2   5.4M HDMI Driver

os: Windows XP/VISTA

2008-2-15 Download Link Other1   4.8M SYSTEM GUARD

os: Windows 2000/XP

2008-2-15 Download Link Raid   1483K Onboard Raid driver

os: Windows 2000 , Windows XP

2008-2-15 Download Link

 Manual
Type Version size Description Date Download Manual 3.0 387KB Manual 2007-11-14 Download Link

Utility
Type Version size Description Date Download Utilities 8.83 32KB BIOS Update Utilities 2007-7-30 Download Link
